Figure C.3 — ARM entity level EXPRESS-G diagram 2 of 4 ../approval/sys/4_info_reqs.htm#approval_arm.approval_item ../identification_assignment/sys/4_info_reqs.htm#identification_assignment_arm.identification_item ../justification/sys/4_info_reqs.htm#justification_arm.justification_item ../person_organization_assignment/sys/4_info_reqs.htm#person_organization_assignment_arm.organization_or_person_in_organization_item ../resource_management/sys/4_info_reqs.htm#resource_management_arm.managed_resource ../resource_management/sys/4_info_reqs.htm#resource_management_arm.resource_event ../resource_management/sys/4_info_reqs.htm#resource_management_arm.managed_resource_relationship ../resource_management_characterized/sys/4_info_reqs.htm#resource_management_characterized_arm.managed_resource_approval_item ../resource_management_characterized/sys/4_info_reqs.htm#resource_management_characterized_arm.resource_management_identification_item ../resource_management_characterized/sys/4_info_reqs.htm#resource_management_characterized_arm.resource_management_justification_item ../resource_management_characterized/sys/4_info_reqs.htm#resource_management_characterized_arm.resource_management_organization_or_person_in_organization_item

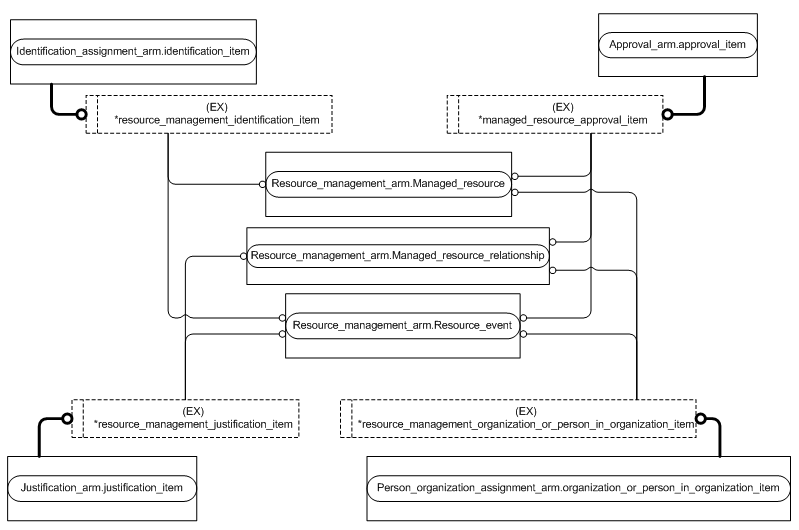

Figure C.3 — ARM entity level EXPRESS-G diagram 2 of 4
